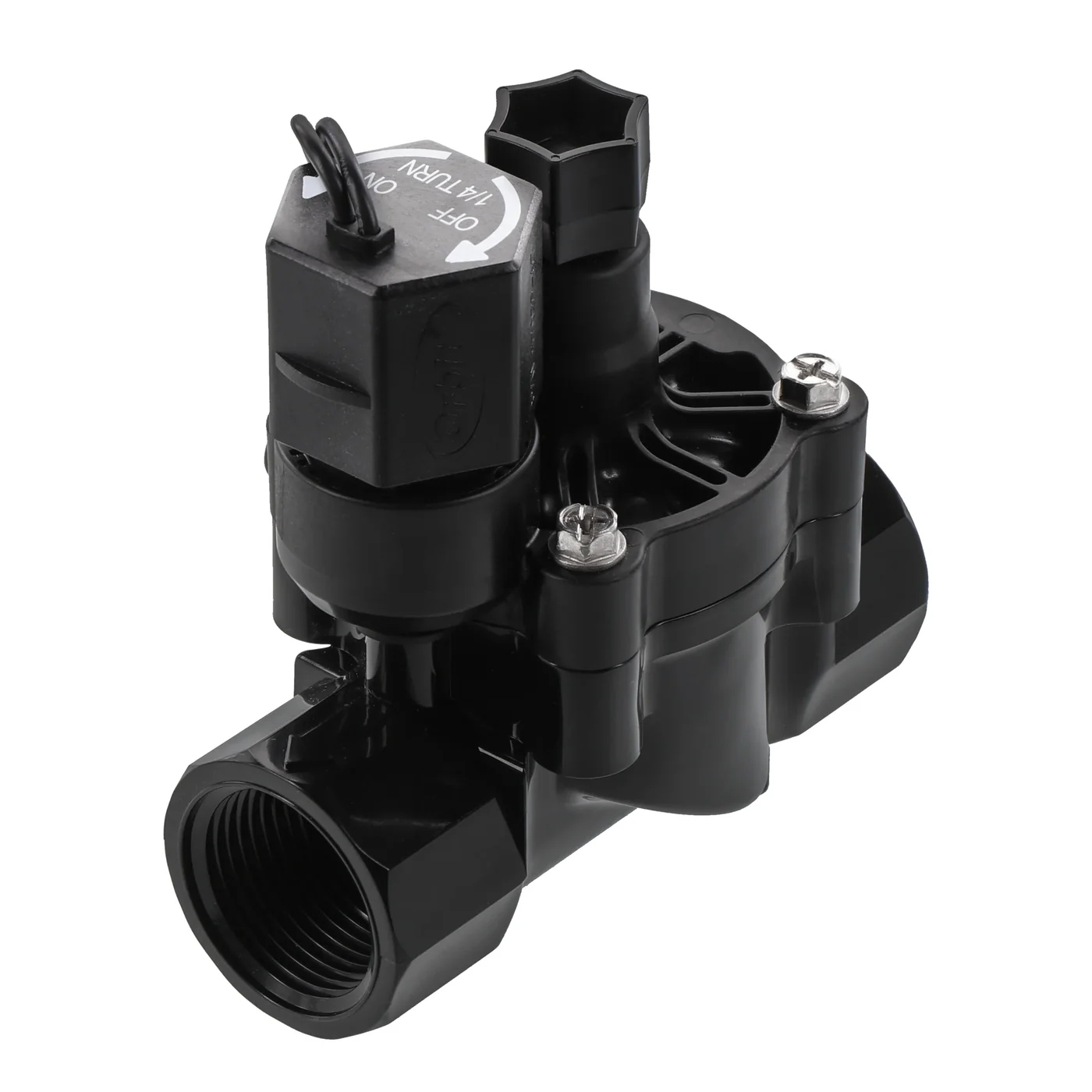

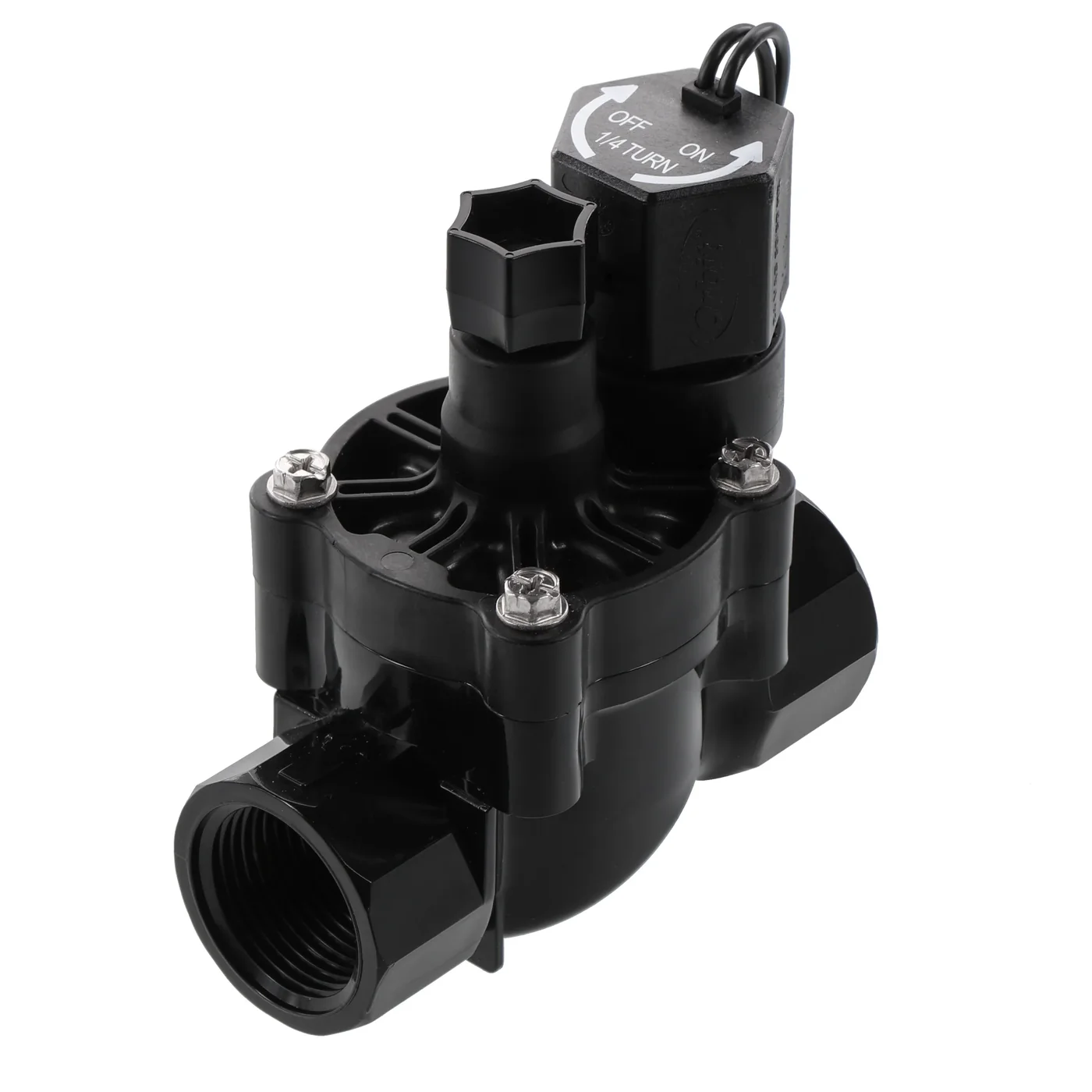

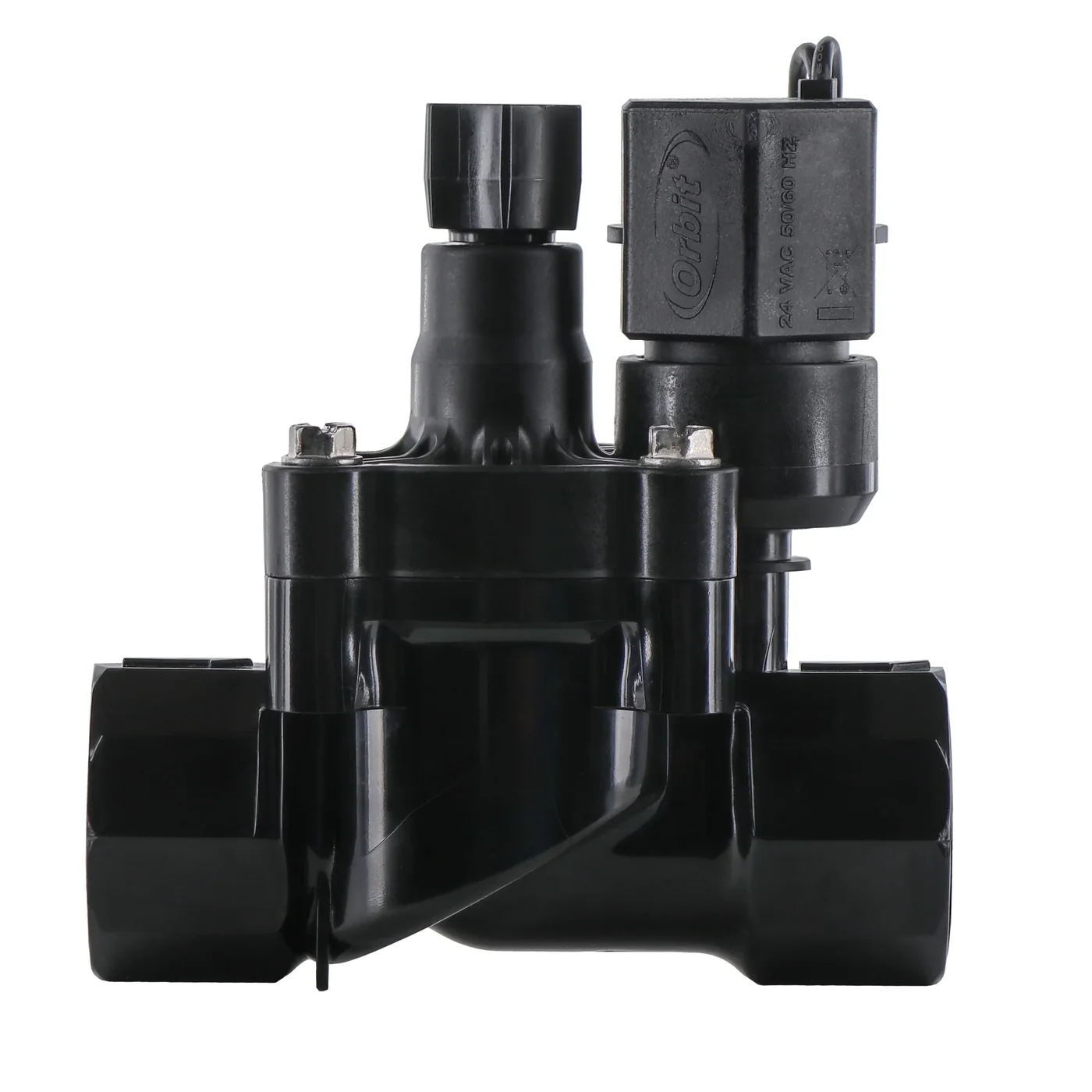

Orbit 57290 Three-Quarter-Inch Inline Valve with Flow Control
Orbit 57290 Three-Quarter-Inch Inline Valve with Flow Control for a wired irrigation zone that needs a flow-control inline valve.
Choose this model for a wired irrigation zone that needs a flow-control inline valve.
- Good for
- A wired irrigation zone that needs a flow-control inline valve.
- Look elsewhere if
- The installation uses a battery controller with a latching solenoid.
- The tradeoff
- Its AC solenoid must match the controller architecture.
At a glance
- Solenoid Voltage
- 24-vac
- Pipe Connection
- three-quarter-fpt
- Valve Format
- single
Why it earns a look
- Flow control adds an adjustment at the valve.
- Captured lid screws support routine diaphragm access.
Where it asks for a compromise
- The stock solenoid requires compatible 24 VAC control.
Match the threads and control voltage first
An inline valve is a system component, so pipe size and controller output matter more than the product's appearance. The flow-control version adds an adjustment at the valve. Leave service space above the lid and use system-appropriate backflow protection rather than treating the valve as that protection.
Living with it in the garden
Check connections for leaks after installation.
Keep serviceable seals and fittings accessible.
Which one belongs in your shed?
Orbit 57257 Four-Valve Preassembled Manifold
Choose the assembled four-valve manifold when building several compatible piped zones together.
Read our takeYour 57290 questions
Which controller output does it need?
The 57290 uses a 24 VAC solenoid. Match the controller output and three-quarter-inch female pipe connections.
What does the flow control add?
It provides a separate valve flow adjustment. Check that the installed zone still receives suitable flow and pressure.
Full specifications, manuals & sources
Model details
- Full model name
- Orbit 57290 Three-Quarter-Inch Inline Valve with Flow Control
- Amazon ASIN
- B0DHN374J5
- Solenoid Voltage
- 24-vac
- Pipe Connection
- three-quarter-fpt
- Valve Format
- single
- Brand
- Orbit
Manuals & product information
Photo sources
Product information checked 2026-10-29. Our assessment uses the linked specifications and manuals; it does not represent a hands-on test. Editorial standards & corrections.
